Fixed Type Vacuum Emulsifying Mixer Face Body Cream Lotion Homogenizing Machine

Short Description:

A fixed pot body vacuum homogenizing emulsifier is a type of emulsifying machine that is used in various industries such as cosmetics, pharmaceuticals, food and chemical processing. It consists of a fixed vessel or pot that is designed to hold the ingredients to be mixed, and a vacuum pump system that creates a vacuum within the vessel.

Product Detail

Product Tags

Machine Video


Daily cosmetic
hair conditioner facial mask moisturizing lotion suncream
skin care shea butter body lotion sunscreen cream
cream hair cream cosmetic paste BB Cream
lotion face wash liquid mascara foundation
hair color face cream eye serum hair gel
hair dye lip balm serum lip gloss
emulsion lipstick highly viscous product shampoo
cosmetic toner hand cream shaving cream moisturizing cream
cheese milk butter ointment ketchup
mustard peanut butter mayonnaise wasabi
toothpaste margarine Salad dressing sauce

Performance & Features

1.The mixing systems double-way mixing & helical ribbon mixing. This agitator consists of two helical-shaped ribbons that are paired and rotate in opposite directions. It has the following characteristics: ​Efficient Mixing: The double helix design of the ribbon blades ensures efficient mixing of materials while avoiding dead spots, High Viscosity Handling: This type of agitator is particularly suitable for processing high viscous materials, such as adhesives, pastes, and gels educed Shear: The gentle mixing action of the ribbon blades reduces the shear that can occur in other types of mixers.

2.The triple mixing adopts the imported frequency converter for speed adiustment. which can meet different technological demands.

3.The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 3000 rpm and the highest shearing fineness can reach 0.2-5 u m.The vacuum defoaming can make the materials meet the requirement of being aseptic.

4.The machine uses an internal circulation system to achieve a more uniform and fine emulsifying effect. The material is circulated within the machine, undergoing multiple cycles of emulsification, until the desired consistency is achieved.

5.The vacuum material sucking is adopted, and especially for the powdelmaterials,vacuum sucking can avoid dust. The pot body is welded by imported three-layer stainless steel plate.

6.The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements. According to technological requirements, the tank body can heat or cool the materials.

7.The heating modes mainly include steam heating or electric heating. To ensure the control of the whole machine is more stable, the electric appliances adopt imported configurations, so as to fully meet the international standards.

8.Easy to Clean and Maintain: The fixed pot body design makes it easy to clean and maintain the machine. This reduces the risk of contamination during the mixing process. The machine equipped with CIP, which can convinient user’s own CIP system to clean the machine.

9.The Siemens PLC control cabinet & Siemens touch screen To ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations,so as to fully Easy-to-use control panel: The machine features a user-friendly control panel, which allows operators to easily adjust the speed, temperature, and other parameters as needed

Technical Parameter

Model Capacity(L) Mixing Power(KW) Mixing Speed(r/min) Homogenizer Power(KW) Homogenizing Speed Heating Method Limit Vacuum(Mpa)
SME-DE 50L 50L 1.5KW 0-63RPM 3KW 0-3000RPM Electric heating or steam heating -0.09
SME-DE 100L 100L 2.2KW 0-63RPM 4KW 0-3000RPM Electric heating or steam heating -0.09
SME-DE 200L 200L 3KW 0-63RPM 5.5KW 0-3000RPM Electric heating or steam heating -0.09
SME-DE 300L 300L 3-5.5KW 0-63RPM 11KW 0-3000RPM Electric heating or steam heating -0.085
SME-DE 500L 500L 4-7.5KW 0-63RPM 15KW 0-3000RPM Electric heating or steam heating -0.08
SME-DE 1000L 1000L 7.5KW 0-63RPM 15KW 0-3000RPM Electric heating or steam heating -0.08
SME-DE 2000L 2000L 11KW 0-63RPM 18.5KW 0-3000RPM Electric heating or steam heating -0.08
Note : In case of inconformity of the data in the due to technical improvement or customization, the real object shall prtvail
SME-DE   Vacuum homogenizing emulsifying machine
Capacity 10-2000L
Uasage Cosmetic cream,paste,ointment,  lotion,gel,conditioner,milk,sauce
High shear rate less than 2um
Contact part SS316L(three material parts adoptSS316L, The rest are ss304
Homogenizer speed 0-3000rpm
Scraper speed 0-63rpm
Heating steam/electric
Operating PLC
Type 1. Lift type (Hydraulic lifting system)
  2 .Fixed type(the cover can't lift)

Product Detailed

SME-DE Vacuum Emulsifying Mixer
SME-DE Vacuum Emulsifying Mixer 2
SME-DE Vacuum Emulsifying Mixer3

SME-DE Vacuum Emulsifying Mixer Project production

SME-DE 300L Vacuum Homogenizer Emulsifying Mixer
SME-DE 500L Vacuum Homogenizer Emulsifying Mixer
oil tank

Oil Tank

double-way mixing & helical ribbon mixing

Double-way Mixing & Helical Ribbon Mixing

Bottom Homogenizer (3)
Bottom Homogenizer
Bottom Homogenizer (2)

Bottom Homogenizer with Internal Circulation

PLC control electric cabinet 2
PLC control electric cabinet

PLC control electric cabinet

Simone touch screen

Simone Touch Screen

control dial

Control Dial

Siemens frequency converter

Siemens frequency converter

Schneider Electric

Schneider Electric

simatic s7-200 smart(PLC)

simatic s7-200 smart(PLC)

Relevant Machines

Reverse Osmosis Water Treatment

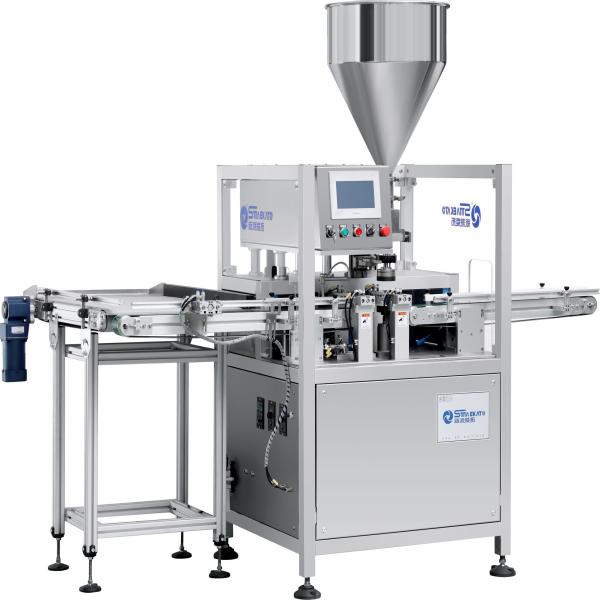

SJ-400 automatic Paste Rotary Filling Machine
