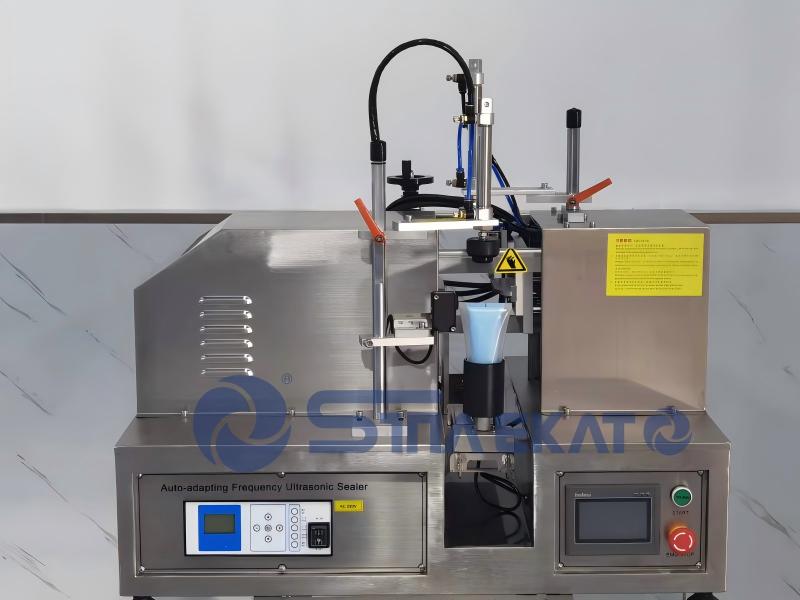

Adopting a semi‑automatic working mode, the machine needs operators to place tubes manually. Once the tube is positioned, the equipment will complete the full workflow automatically, including color‑mark inspection for accurate positioning, ultrasonic thermal sealing and tail trimming. Supported by PLC control system and intuitive touch‑screen human‑machine interface, the device delivers user‑friendly operation. Factory staff can master basic operations after short‑term training. With consistent and reliable running performance, it effectively reduces manual labor intensity while helping manufacturers upgrade their overall packaging quality and production efficiency.
To guarantee long‑term stable operation, the machine is assembled with high‑grade domestic and imported core parts. Its configuration covers an electronic automatic frequency‑tracking ultrasonic system, Japanese‑origin benchmark sensor, high‑performance relays, cylinders and solenoid valves from reputable brands. The whole machine shell and main contact parts are constructed of 304 stainless steel material. The stainless‑steel structure features anti‑corrosion property and simple surface cleaning, which fully satisfies strict hygiene requirements for cosmetic and pharmaceutical production environments.
For operational parameters, the machine works with 220V, 50Hz power supply and 0.5 MPa working air pressure. Its ultrasonic working frequency reaches 20 kHz and rated power is 2600 W. It can process 10 to 13 tubes every minute. It accommodates tube diameters ranging from 10 mm to 50 mm and sealing height from 50 mm to 200 mm, covering the specifications of most mainstream plastic tubes on the market. Measuring L850 mm × W600 mm × H730 mm and weighing 120 kg, the compact structure takes up limited workshop space and facilitates onsite layout.
