Sina Ekato high-quality custom mobile mixing pot is a multifunctional industrial mixing and processing equipment, specially optimized for cosmetics, daily chemicals and other industries. With integrated heating, high-speed dispersion and sanitary design, it meets the precision production demands of various viscous slurry and liquid materials, featuring stable performance and wide applicability.
1. Core Working Principle & Functions
Equipped with a high-speed double dispersion disc system, the machine realizes strong shear, impact, crushing and dispersion of materials during operation. It efficiently completes grinding, emulsifying, uniform mixing and fine refining of raw materials with different viscosities. This design solves the problems of uneven mixing and large material particles in traditional processing, greatly improving production efficiency and product fineness.
2. Premium Structural & Sanitary Design

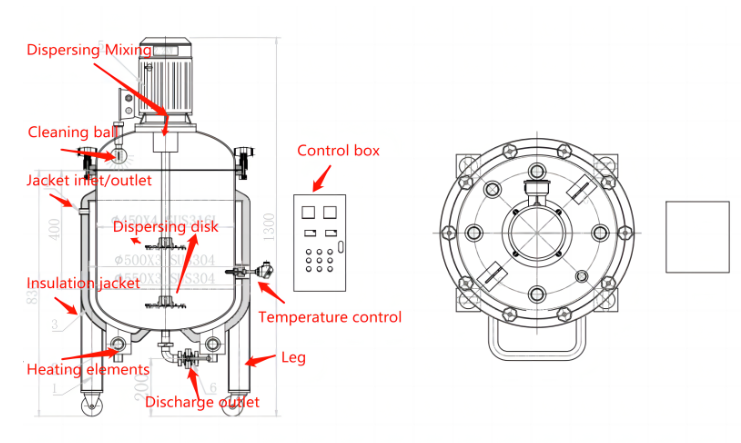

The pot adopts a three-layer stainless steel structure, including an outer thermal insulation layer, a middle electric heating layer and an inner material contact layer made of imported SS316L stainless steel. The inner wall is polished to 300EMSH sanitary mirror level without dead corners or material residue. It adopts flange sealing connection between the pot body and cover, and reserves multiple process holes for feeding, discharging, temperature and pressure measurement. Built with a 360° CIP cleaning ball, it supports full-range automatic cleaning to meet sanitary production standards.
3. Reliable Performance & Configuration
Taking the classic SME-B-50L model as an example, the equipment is equipped with a Siemens motor and inverter speed regulation system, with a stirring speed range of 0-3400 r/min and a 5.5KW motor power. The 3KW heating system ensures stable and uniform material heating, and the working pressure ranges from 0.1 to 0.15 Mpa. All electrical components adopt imported configurations with mechanical sealing transmission, ensuring stable, safe and durable long-term operation.
4. Wide Applications & Standard Compliance
This mobile mixing pot is widely used in cosmetics, food, beverage, pharmaceutical, bioengineering and chemical industries. Strictly designed in accordance with DIN, SMS, 3A, ISO and other international standards, it fully conforms to GMP, QS and HACCP production requirements. Its mobile design improves production flexibility, making it ideal for standardized and customized small and medium batch production.
