The perfume pump head pneumatic V‑shear machine is a specialized cosmetic processing device designed for cutting dip tubes of perfume pump heads and various emulsion pumps. Adopting full‑pneumatic driving mode, this equipment delivers safe, energy‑saving performance for small‑and‑medium cosmetic production workshops. Below are its main parameters, core features and application highlights.
Main Technical Parameters
- ● Applicable pipe length: 50‑180 mm
- ● Pipe diameter range: φ1‑6 mm
- ● Working air pressure: 0.4‑0.5 Mpa
- ● Overall dimension: 201840 cm
- ● Machine weight: 40 kg
- ● Control mode: Full pneumatic control
- ● Main body material: Aluminium alloy
- ● Pneumatic components: AURTAC brand parts
Core Performance & Features

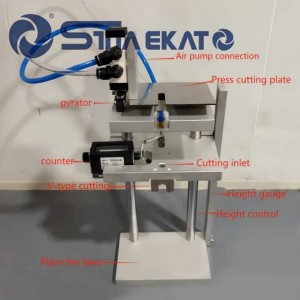

- Built‑in counter for output statistics Every cutting action triggers one count on the mechanical counter. Operators can easily record production volume without extra manual counting, which optimizes workshop production management.
- Customizable V‑shaped cutting slot The V‑shaped notch prevents plastic tube buckles from blockage during liquid suction. The cutting slot supports custom‑shaped modification to satisfy diverse product requirements for cosmetic pump dip tubes.
- Roller push‑back reset structure Equipped with roller‑type push‑back device, the pressing and reset movement runs smoothly. It reduces mechanical wear and improves long‑term operation stability.
- Power‑free pneumatic drive, eco‑friendly operation This machine only connects to an air compressor, requiring no electric power supply. It achieves green and low‑energy consumption for production sites.
- Ergonomic pressing cutting plate Fixed‑groove pressing cutting plate follows ergonomic pressing angle. It lowers operating fatigue and makes repetitive cutting operations simpler for workers.
- Precise length adjustment system With height gauge and height control structure, users can set exact cutting lengths for plastic dip tubes. Consistent tube‑length output guarantees stable pump assembly quality.
- Durable brand pneumatic assembly Original AURTAC pneumatic elements ensure reliable performance, lower failure rate and extend the machine’s service life for continuous batch processing.
Application Value
Compact‑structured and easy‑to‑install, this V‑shear machine fits cosmetic pump pre‑processing workflows. It replaces inefficient manual cutting, improves cutting consistency and reduces defective dip‑tube products for perfume, lotion and emulsion pump manufacturing.
