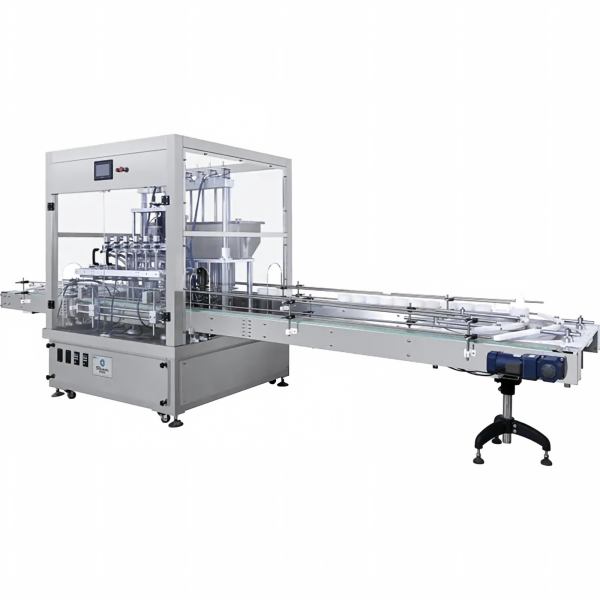

The fully‑automatic six‑head tracking‑type servo filling and capping production line is a high‑performance integrated packaging solution. It processes materials ranging from thin water‑like liquids to thick heavy cream, widely adopted in cosmetics, food, pharmaceutical, petroleum and special‑purpose manufacturing industries. It balances fast speed, precise dosing and strong adaptability for modern mass production.
Core hardware and hygienic construction
Product‑contact parts adopt Swedish‑sourced 316L stainless steel with CNC machining, achieving surface roughness below 0.8. The rest of the frame uses 304 stainless steel. Key electrical and pneumatic parts are world‑famous brands: Siemens PLC and touch screen, Mitsubishi servo motors, AirTac pneumatic cylinders and Omron photoelectric sensors. Clamp‑connected pipe joints enable fast disassembly, assembly and thorough cleaning, complying with industrial hygiene requirements.
Intelligent functional designs
It is fitted with a bottle‑mouth localizer to accommodate regular and irregular‑shaped bottles. Anti‑drip filling nozzles eliminate dripping and stringing; lifting‑type nozzles are optional for high‑foam materials. Built‑in “no bottle no fill”, automatic fault scanning and liquid‑level security alarm functions lower material waste and operational risks. Operators can adjust total filling volume on the touch panel and fine‑tune each filling head independently. Fault self‑diagnosis displays error codes clearly for quick maintenance, and single‑head faults will not interrupt other filling units.
Technical performance parameters
Equipped with six servo‑driven filling heads, its production speed reaches 40‑80 bottles per minute with filling accuracy of ±1%. It supports multiple filling ranges including 5‑60 ml, 10‑120 ml, 25‑250 ml, 50‑500 ml and 100‑1000 ml. It works for bottles 50‑200 mm in height and 40‑110 mm in diameter. Working requirements are 220 V, 2 KW power supply and 0.6 Mpa air pressure, with overall dimension of 5000×1300×1950 mm. Custom‑made 2‑12 filling‑head configurations are available for diverse output targets.
Wide industrial application scope
This production line handles cream, lotion, shampoo, hair conditioner, body wash, mouthwash, hand sanitizer, sauce, oral liquid and lubricating oil. It can connect with supporting equipment such as labeling machines, automatic screw capping machines and bottle feeding/collecting tables to build complete turn‑key packaging workshops for different manufacturers.
