1 Material & Surface Treatment

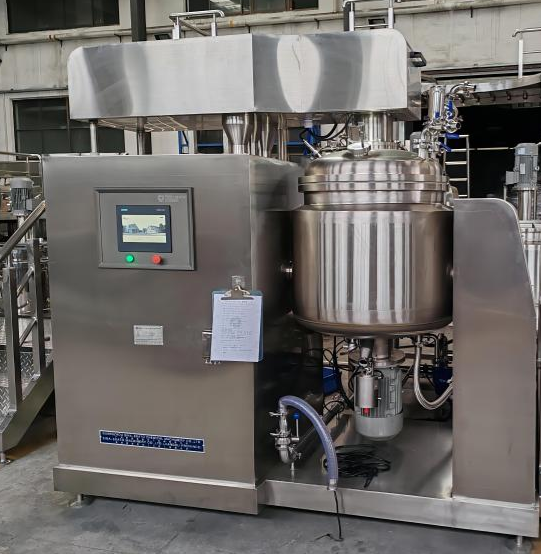

‑ Design volume: 125L; Working volume: 100L, three‑layer tank structure
‑ Product‑contact parts: SUS316L; middle & outer layers: SUS304
‑ Tank thickness: inner 5 mm, intermediate 4 mm, outer 2 mm
‑ Inner surface roughness ≤0.5Ra; outer surface roughness ≤0.9Ra
2 Key Brand Components
3 Core Performance Parameters
‑ Steam heating + water cooling, fitted with steam gauge & safety valve (standard 2.0 kg pressure)
‑ Vacuum pump power: 2.35 kW; Negative pressure: ‑0.090 Mpa; Max positive pressure: 1.5 kg.f/cm²
‑ Top stirring: 3 kW, 0‑60 RPM, forward/reverse rotation with PTFE scraper
‑ Bottom circulating homogenizer (German patented technology): 7.5 kW, 0‑3000 RPM variable speed
‑ Double hydraulic lifting system (hydraulic motor 2.2 kW); no hydraulic tilting‑reset function
‑ Discharge options: positive‑pressure discharge, homogenizer discharge, rotary‑pump discharge (extra cost), tilting discharge; tilting function only for ≤500L models
4 PLC & Touch‑Screen Control System
‑ Controller: Siemens SMART 200 PLC + SMART LINE 1000IE
‑ Dual touch screens (front & rear panel)
‑ Equipped with emergency stop, power‑on indicator, 2‑piece exhaust fan
‑ Full Schneider electric parts; circuits marked with number & English labels
5 Tank Top Functional Fittings
- ‑ Material inlet: vacuum feeding for raw materials
- ‑ Essence hopper: for fragrance addition
- ‑ Positive‑pressure inlet: for air input during positive‑pressure discharging
- ‑ Manhole & sight glass: internal observation
- ‑ LED lamp: inner‑tank lighting
- ‑ 2 pieces of 360° rotatable CIP spray balls
- ‑ Air‑breathing filter for vacuum release
- ‑ Automatic vacuum gauge, vacuum‑value settable on touch screen
6 Automatic Piping System
‑ Installed around the main mixing tank
‑ Pneumatic automatic valves
‑ Interfaces: steam inlet & outlet, cooling‑water inlet & outlet, sewage outlet
